SOCKET WELD 45 DEGREE ELBOW

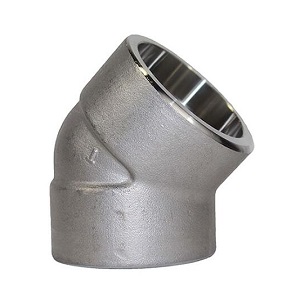

Socket Weld 45 Degree Elbow

ADK ENGINEERING CO.,LIMITED is the professional supplier of Steel Socket Weld 45 Degree Elbow (CODO)from China,especially stainless steel socket weld 45 degree elbows.We could provide stainless steel butt weld pipe fittings,stainless steel socket weld pipe fittings,stainless steel threaded pipe fittings and stainless steel pipe flanges for pipeline project.We offer to our clients with options of customising the size for each purchase order according to correct standard.Socket weld is a kind of pipe attachment detail in which a pipe inserted into the recessed area of a pipe,Valve or a Pipe Flange.Stainless Steel Socket Weld 45°Elbow make 45°changes of direction in the run of the pipe.This kind of steel elbows with two types,short radius elbow and long radius elbow.This kind of fittings add pressure losses to the system due to impact,re-acceleration and friction.

Standard:ASME B16.11,CODO DIN2605 BA2 BA3

Size:1/8” to 4:NB   Pressure Class:3000Lbs,6000Lbs,9000Lbs

Steel materials of forged elbows(CODO)

Stainless Steel:ASTM A182 F304L,F304H,F316,F316L,F317,F317L,F321,F347,F904L

Duplex Steel:ASTM A182-F51 F53 F55 S31803 S32205 S32550 S32750 S32760 S32950

Carbon Steel Forged Socket Weld Elbow:ASTM A105 ASTM A350

Alloy Steel Socket Weld Elbow:ASTM A182 A335 A235 GR P5 P9 P11 P12 P22 P23 P91

Coated Service for Socket weld pipe elbows(CODO):

STAINLESS STEEL SOCKET WELD 45 DEGREE ELBOW

1.Stainless steel: Pickled, FBE coating

2.Carbon steel: Galvanized and Black Primer

3.Alloy Steel: Vanish,Galvanized,FBE coating

Payment term:TT,LC,CAD,OA.etc

Shipment term:LCL,FCL,20FT,40FT, EXPRESS,etc

Loading Port:Shanghai,Tianjin,Qingdao,Shenzhen

MTC according to EN10204.3.1

Doc:CI,PL,BL,CO,FORME,FORMF,FORMA.etc

The third party inspection(BV or SGS) before shipment.

Application:Socket weld elbow are known as a deliver exceptional performance and are developed for meeting the demands.ADK ENGINEERING CO.,LIMITED submit a big range of forged Socket weld 45 degree elbow through worldwide networks.and we are the professional provider for stainless steel socket weld elbows,both 45 degrees(CODO) and 90 degrees,and other stainless steel pipe fittings.

Contact us info@ipipefittings.com once you have any inquiry related on stainless steel pipe fittings.
