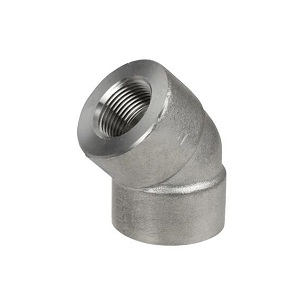

THREADED 45 DEGREE ELBOW

THREADED 45 DEGREE ELBOW

ADK ENGINEERING CO.,LIMITED is the professional supplier of Steel Threaded 45 Degree Elbow(CODO) from China,especially stainless steel threaded 45 degree elbows.We could provide stainless steel butt weld pipe fittings,stainless steel socket weld pipe fittings,stainless steel threaded pipe fittings and stainless steel pipe flanges,also duplex steel materials.We offer to our clients with options of customising the size for each purchase order according to correct standard.Threaded type is a kind of connecting type between pipe,Valve and a flange by threaded type,NPT BSP.Stainless Steel Threaded 45°Elbow make 45°changes of direction in the run of the pipe.This kind of steel elbows with two types,short radius elbow and long radius elbow.This kind of fittings add pressure losses to the system due to impact,re-acceleration and friction.

Standard of Forged Threaded 45 Degree Elbow(CODO):

ASME B16.11,DIN2605 BA2 BA3

Size:1/8” to 4:NB    Connecting Type:NPT or BSP

Pressure Class:2000Lbs,3000Lbs,6000Lbs

Steel materials of forged elbows(CODO)

Stainless Steel:ASTM A182 F304L,F304H,F316,F316L,F317,F317L,F321,F347,F904L

Duplex Steel :ASTM A182-F51 F53 F55 S31803 S32205 S32550 S32750 S32760 S32950

Carbon Steel:ASTM/ASME SA105 ASTM/ASME SA350 LF2,SA350 LF3

Alloy Steel:ASTM A182 A335 A235 GR P5 P9 P11 P12 P22 P23 P91

Coated Service for Steel pipe elbows:

HIGH QUALITY STAINLESS STEEL THREADED 45 DEGREE ELBOW

1.Stainless steel: Pickled, FBE coating

2.Carbon steel: Galvanized and Black Primer

3.Alloy Steel: Vanish,Galvanized,FBE coating

Payment term:TT,LC,CAD,OA.etc

Shipment term:LCL,FCL,20FT,40FT, EXPRESS,etc

Loading Port:Shanghai,Tianjin,Qingdao,Shenzhen

MTC according to EN10204.3.1

Doc:CI,PL,BL,CO,FORME,FORMF,FORMA.etc

The third party inspection(BV or SGS) before shipment.

Application:Stainless Steel Pipe elbows are known as a deliver exceptional performance and are developed for meeting the demands.As a professional stainless steel pipe fittings supplier from China,ADK ENGINEERING CO.,LIMITED submit a big range of forged stainless steel 45 degree pipe elbows(CODO) through worldwide networks.and we are the professional provider for stainless steel threaded pipe elbows,both 45 degrees and 90 degrees.

Welcome to purchase stainless steel pipe fittings from us info@ipipefittings.com
