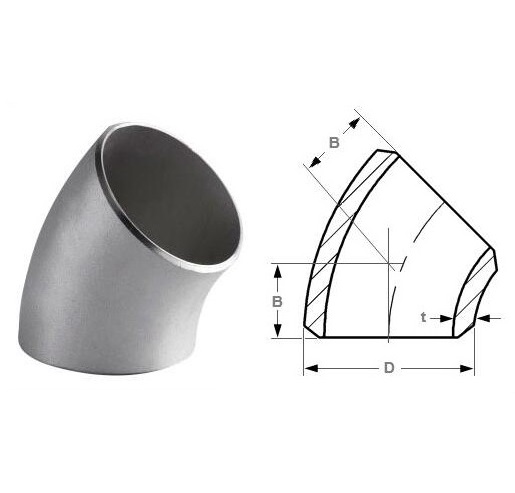

304L 45 DEGREE ELBOW
Professional SS304L 45 Degree Steel Elbow Supplier304L 45 Degree Elbow Details:
ADK ENGINEERING CO.,LIMITED is a professional 304L 45 Degree Elbow supplier from China,which could provide all steel grade of stainless steel and duplex steel pipe elbows,45 degree pipe elbows,90 degree pipe elbows,180 degree pipe elbows.Butt Welded Pipe elbows,Socket welded Pipe Elbows,Threaded Pipe Elbows.
CHINA 304L 45 DEGREE ELBOW SUPPLIER
Name:304L 45 Degree Elbow
Material:Stainless Steel 304L
Other steel grade of Stainless Steel:
ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H
ASTM/ASME A403 WP 347-347H
Degree:45 Degree
Type:Long Radios and Short Radius
End:Beveled End
Size:DN15-DN1200
Standard of Pipe Elbows:
ASME/ANSI B16.9,ASME/ANSI B16.11,ASME/ANSI B16.28,ASME B16.5,MSS SP-43,MSS SP-79,MSS SP-83,MSS SP-97,GB/T10752-1995,DIN 2605,DIN 2605 Part 1 and DIN 2605 Part 2,EN10253 Typ A and B,GOST 17375-2001
Mill Test Certificate: EN10204 3.1
Third Party Inspection Agency Like SGS,TUV,DNV,BV,LR.etc
Application:Chemical,Architecture,Water Supply,Drainage,Petroleum,Shipbuilding,Power Station.etc
A pipe elbow is a type of pipe fitting that is bent at an angle or curve to allow straight pipes to be joined at an angle.The pipe elbow can be made from a variety of materials, from carbon steel,stainless steel,alloy steel,duplex steel and others,Pipe elbow fittings may be welded to the other pipes for a more permanent fixture.This is common when used on petroleum or heavy machinery.The elbows can be cut to length and then welded to straight pieces to form the desired shape.
Pipe elbow are also categorized by length.The radius of curvature of a long-radius (LR) elbow is 1.5 times the pipe diameter,but a short-radius (SR) elbow has a radius equal to the pipe diameter.Short elbows,widely available,are typically used in pressurized systems.Long elbows are used in low-pressure gravity-fed systems and other applications.
Other steel Materials and Steel Grade of Pipe Elbows:
Carbon steel: ASTM/ASME A/SA 234 A/SA240
Grade:WPB,WPC,WPL,WHPY42,WHPY46,WHPY52,WHPY60
P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H
S30815,S31000,S31050,S31500,S31726,S31803,S32760,N08904
Alloy Steel:ASTM/ASME A234 WP1,WP5,WP9,WP11,WP12,WP22,WP91
Low Temperature Steel: ASTM/ASME A402 WPL3-WPL6
Contact us info@ipipefittings.com when you have enquiry related on stainless steel pipe elbows.
