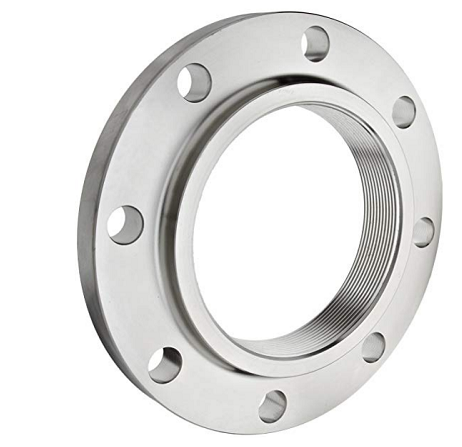

STAINLESS THREADED PIPE FLANGE

Introduction of Stainless Threaded Pipe Flange

CHINA STAINLESS THREADED PIPE FLANGE SUPPLIER

Stainless Threaded Pipe Flange is a kind of pipe flange used with pipes that have external thread.it will no need welding,there is small additional torque when flange distortion.it is mainly used for small diameter, high pressure requirements.disadvantage:the thickness of flange(brida de tubo) is big,and price high.and it is suite for high press pipeline connecting.Threaded Pipe Flange is a kind of can not welded pipe flange connected between pipe and threaded pipe,and its inner bore is processed into threaded type,and connected with threaded pipe.it is easy installation and maintenance.and it could be used under the circumstance can not be welded.there are many kinds of alloy steel threaded pipe flange,because it is bad welding performance.but please don’t choose threaded pipe flange(brida de tubo) when the temperature more than 260 ℃ and less -45 ℃,because there will be leakage in the connecting area.

Stainless Threaded Pipe Flange are widely demanded as pipe flanges(mặt bích) i.e called as threaded pipe flanges used in different industrial applications.Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.Threaded Flanges are mostly used in utility services such as air and water.We supply Threaded pipe flanges in all steel material grades, including carbon threaded pipe flanges, stainless steel threaded pipe flanges,Duplex steel threaded pipe flanges,and alloy threaded pipe flanges. We also has many different threaded pipe flanges(mặt bích) in stock and ready to ship.

Threaded flanges Size: 1/2″ to 24″.

Pressure class: 150#, 300#,400 #,600#,900#, 1500# & 2500 #

Facing: RF / RTJ

Standard of Threaded Pipe Flange:

ANSI:ANSI B16.5,ANSI B16.47,MSS SP44,ANSI B16.36,ANSI B16.48,JIS,DIN,BS4504,SABS1123,EN1092-1,UNI,AS2129,GOST-12820,DIN:DIN2527,DIN2566,DIN2573,DIN2576,DIN2641,DIN2642,DIN2655,DIN2656,DIN2627,DIN2628,DIN2629,DIN2631,DIN2632 ,DIN2633,DIN2634,DIN2635,DIN2636,DIN2637,DIN2638,DIN2673,BS:BS4504,BS4504,BS1560,BS10,DIN 2558, DIN 2565 – DIN 2569

Other Steel Material of Stainless Threaded Pipe Flange(mặt bích):

Cabon steel: ASTM/ASME A/SA105 ASTM/ASME A350,ASTM A 181 LF2/A516 Gr 70 A36,A694 F42,F46,F52,F60,F65,F70

Stainless steel: ASTM A 182,A 240 F 304,304L,304H, 316,316L,316Ti,310,310S,321,321H,317,347,347H,904L

Alloy steel: ASTM/ASME A/SA 182 & A 387 F1,F5,F9,F11,F12,F22,F91

Duplex Steel:ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61

Type of Stainless Thread Pipe Flange(brida de tubo):

Threaded Flanges,TH Flanges,Plain threaded flanges(brida de tubo),Female threaded flanges(brida de tubo),Male threaded flanges(mặt bích)

Export Packing: plywood case and plywood pallet

Contact us info@ipipefittings.com if you required Stainless Threaded Pipe Flange.
